Engineers Create Unusual 4-Winged Flapping Drones Impressed by Chook Wings

We’ve got developed four-winged bird-like robots, known as ornithopters, that may take off and fly with the agility of swifts, hummingbirds and bugs. We did this by reverse engineering the aerodynamics and biomechanics of those creatures.

Our ornithopters have the potential to outperform and outmanoeuvre present drone configurations with static wings or propellers.

What are ornithopters?

Ornithopters are flying machines primarily based on the design of birds. Current drone configurations depend on propellers and static wings. Ornithopters flap their wings to generate ahead thrust. The complicated relationship between aerodynamics and wing actions permits birds and bugs to fly in methods which are inconceivable for typical drones.

Why do we would like ornithopters?

Ornithopters fly in a different way to traditional drones. They will glide, hover, and carry out aerobatics. In several conditions, they will both save vitality by flying like an everyday aeroplane or select to hover. They will take off and land slowly in tight areas, but may shortly soar upwards to perch like a hen.

Present multirotor drones hover very properly, however use much more vitality in ahead flight than in hover, to allow them to’t actually journey far. Mounted wing drones can journey effectively at excessive speeds, however hovering is just not usually potential with out compromising your complete design. There are hybrid ideas, normally with wings and rotors. Hybrid plane carry out poorly when hovering and cruising when in comparison with different designs as a result of further weight and drag from having extra components.

Flapping wings are nature’s unique resolution to the necessity to fly each shortly and slowly, in addition to touchdown and taking off from wherever. For a hen or insect, each a part of the system is used for hovering and cruising flight, with out carrying redundant thrusters or further wings.

Current fixed-wing and rotary-wing drones are so properly understood that designs at the moment are close to the boundaries of how environment friendly they are often. Including something new comes at a price to different points of efficiency.

In precept, ornithopters are able to extra complicated missions than typical plane, similar to flying lengthy distances, hovering at instances, and manoeuvring in tight areas. Ornithopters are much less noisy and safer to make use of round people, due to their giant wing space and gradual wing beats.

How can we make a working ornithopter?

An ornithopter is a extremely complicated system. Till now, flapping wing drones have been gradual flying and never able to attaining the velocity and energy required for vertical aerobatics or sustained hovering.

The few commercially obtainable ornithopters are designed for ahead flight. They climb slowly like an underpowered aeroplane, and may’t hover or climb vertically.

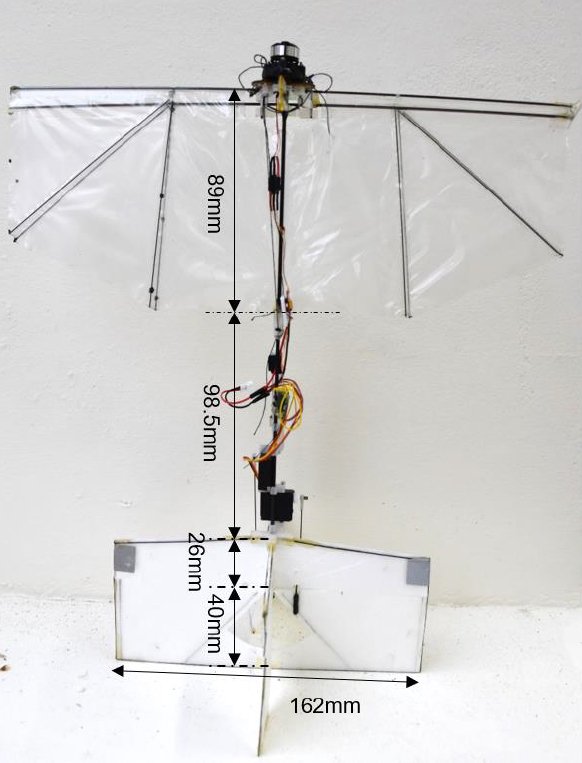

Our design is completely different in a number of methods.

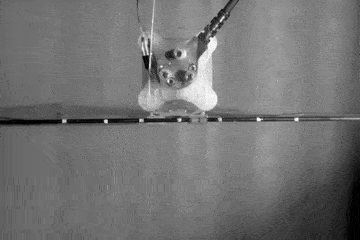

One distinction is that our ornithopters make use of the “clap and fling” impact. The 2 pairs of wings flap such that they meet, like fingers clapping. This makes sufficient further thrust to elevate their physique weight when hovering.

(Writer offered)

We improved effectivity by tuning the wing/physique hinge to retailer and get better the vitality of the shifting wing when the wings change course, like a spring. We additionally found that a lot of the vitality loss occurred as a result of the gears flexed underneath the load of driving the wing. We resolved this with minute bearings and by rearranging shafts within the transmission to maintain the gears spaced accurately.

The big tail, comprising a rudder and elevator, creates a variety of turning pressure. This permits aggressive aerobatic manoeuvres and switching quick from horizontal to vertical flight.

The system was designed to have the ability to pitch nostril up, quickly rising its angle of assault to the purpose the place the wing doesn’t generate elevate, a phenomenon known as “dynamic stall”.

Dynamic stall creates a variety of drag, turning the wing right into a parachute to gradual the plane. This is able to be undesirable in lots of drones, however the potential to enter this state and shortly get better provides to manoeuvrability. That is helpful when working in cluttered environments or touchdown on a perch.

Catching up with evolution

One of many main findings of our work was that a sensible ornithopter may obtain related effectivity to a propeller pushed plane. A number of behaviours turned potential for the ornithopter as soon as some further energy was liberated.

This actually confirmed that optimising the flight equipment is vital to creating these new plane designs viable. We at the moment are working to make use of wing designs copied from nature. We hope for equally giant enhancements.

In some methods, such giant effectivity features from design adjustments in these new methods shouldn’t be shocking. Winged organisms have been optimised by evolution over a whole bunch of tens of millions of years. We people have been at it for lower than 200 years.

Javaan Chahl, DST Group Joint Chair of Sensor Techniques, College of South Australia.

This text is republished from The Dialog underneath a Inventive Commons license. Learn the unique article.
