There is a Easy Technique to Retailer Renewable Vitality, And We Already Have The Expertise

The impact that fossil fuels are having on the local weather emergency is driving a global push to make use of low-carbon sources of power. In the intervening time, the most effective choices for producing low-carbon power on a big scale are wind and solar energy.

However regardless of enhancements over the previous few years to each their efficiency and value, a major drawback stays: the wind does not all the time blow, and the solar does not all the time shine.

An influence grid that depends on these fluctuating sources struggles to consistently match provide and demand, and so renewable power generally goes to waste as a result of it is not produced when wanted.

One of many fundamental options to this drawback is large-scale electrical energy storage applied sciences. These work by accumulating electrical energy when provide exceeds demand, then releasing it when the alternative occurs. Nevertheless, one problem with this methodology is that it entails huge portions of electrical energy.

Present storage applied sciences like batteries would not be good for this sort of course of, as a result of their excessive price per unit power. At present, over 99 p.c of large-scale electrical energy storage is dealt with by pumped hydro dams, which transfer water between two reservoirs by way of a pump or turbine to retailer or produce energy.

Nevertheless, there are limits to how far more pumped hydro will be constructed as a result of its geographical necessities.

One promising storage choice is pumped thermal electrical energy storage. This comparatively new expertise has been round for about ten years, and is at the moment being examined in pilot vegetation.

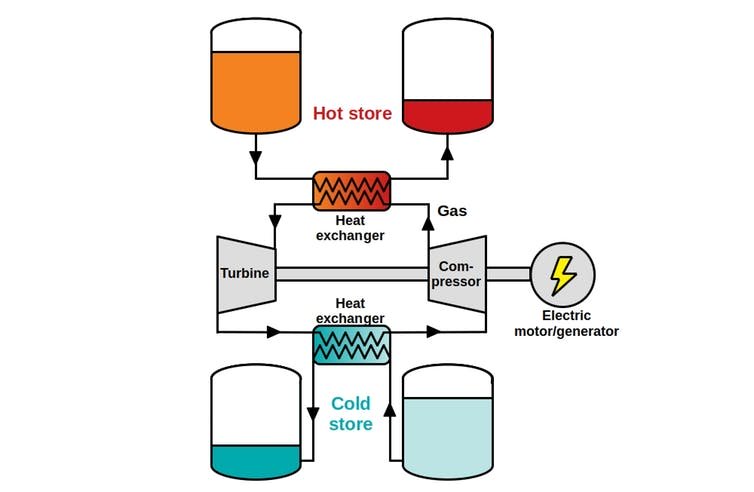

The conversion of electrical energy to warmth occurs within the central circuit, then saved in cold and hot tanks. (Pau Farres Antunez)

Pumped thermal electrical energy storage works by turning electrical energy into warmth utilizing a large-scale warmth pump. This warmth is then saved in a sizzling materials, akin to water or gravel, inside an insulated tank.

When wanted, the warmth is then turned again into electrical energy utilizing a warmth engine. These power conversions are completed with thermodynamic cycles, the identical bodily ideas used to run fridges, automotive engines or thermal energy vegetation.

Recognized expertise

Pumped thermal electrical energy storage has many benefits. The conversion processes largely depend on standard expertise and elements (akin to warmth exchangers, compressors, generators, and electrical mills) which can be already broadly used within the energy and processing industries.

This may shorten the time required to design and construct pumped thermal electrical energy storage, even on a big scale.

The storage tanks will be full of considerable and cheap supplies akin to gravel, molten salts or water. And, not like batteries, these supplies pose no menace to the surroundings.

Giant molten salt tanks have been efficiently used for a few years in concentrated solar energy vegetation, which is a renewable power expertise that has seen speedy progress over the last decade.

Concentrated solar energy and pumped thermal electrical energy storage share many similarities, however whereas concentrated solar energy vegetation produce power by storing daylight as warmth (after which changing it to electrical energy), pumped thermal electrical energy storage vegetation retailer electrical energy that will come from any supply – photo voltaic, wind and even nuclear power, amongst others.

Simple to deploy and compact

Pumped thermal electrical energy storage vegetation will be put in wherever, no matter geography. They’ll additionally simply be scaled as much as meet the grid’s storage wants.

Different types of bulk power storage are restricted by the place they are often put in. For instance, pumped hydro storage requires mountains and valleys the place substantial water reservoirs will be constructed. Compressed air power storage depends on massive subterranean caverns.

Pumped thermal electrical energy storage has a better power density than pumped hydro dams (it may retailer extra power in a given quantity). For instance, ten instances extra electrical energy will be recovered from 1 kilogram of water saved at 100°C (212°F), in comparison with 1 kilograms of water saved at a peak of 500 metres in a pumped hydro plant.

Which means that much less area is required for a given quantity of power saved, so the environmental footprint of the plant is smaller.

Lengthy life

The elements of pumped thermal electrical energy storage sometimes final for many years. Batteries, then again, degrade over time and have to be changed each few years – most electrical automotive batteries are sometimes solely assured for about 5 to eight years.

Nevertheless, though there are various issues that make pumped thermal electrical energy storage well-suited for large-scale storage of renewable power, it does have its downsides.

Probably the most important drawback is its comparatively modest effectivity – that means how a lot electrical energy is returned throughout discharge, in comparison with how a lot was put in throughout cost. Most pumped thermal electrical energy storage programs goal for 50-70 p.c effectivity, in comparison with 80-90 p.c for lithium-ion batteries or 70-85 p.c for pumped hydro storage.

However what arguably issues most is price: the decrease it’s, the quicker society can transfer in direction of a low carbon future. Pumped thermal electrical energy storage is anticipated to be aggressive with different storage applied sciences – although this may not be recognized for sure till the expertise matures and is totally commercialised.

Because it stands, a number of organisations have already got working, real-world prototypes. The earlier we check and begin deploying pumped thermal electrical energy storage, the earlier we will use it to assist transition to a low-carbon power system.

Antoine Koen, PhD Candidate in Pumped Thermal Vitality Storage, College of Cambridge and Pau Farres Antunez, Postdoctoral researcher in Vitality Storage, College of Cambridge.
